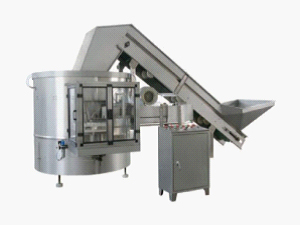

Bottle Unscrambler & Conveyor

Bottle Unscrambler & Conveyor

Description
GL series bottle unscrambler is an indispensable auxiliary machine for high-speed bottle fillers. This bottle arranging machine can produce 8000-10000bottles per hour. Adopting mechanical operations, the unscrambling machine enables to tidy the random bottles and set them in good order to the conveying belt of the filling machine, in order to satisfy the demands of the full automatic production process.

The main components of our bottle unscrambler are made of 304 stainless steel. Controlled by PLC, this bottle arranging machine can be stepless speed regulation. In addition, all electrical components employ joint venture brands.

Working Principle
This bottle unscrambling machine will arrange the rambling bottles in good order and transport them to air conveyor of the filling machines.

Why choose us?

Parameters of Bottle Unscrambler & Conveyor

Model LP-1
Diameter (mm) 2450
Capacity (bottle/h) 8000-10000
Air pressure (Mpa) 0.7
Air consumption (M³/min) 0.4
Suitable bottle shape (mm) dia.￠50-￠90
Height150-290
Power (kw) 1.5
Weight (kg) 3000
Overall Size (mm) 3100×2450×2200

As a professional bottle unscrambler manufacturer and unscrambling machine supplier, Pripack provides paper cutter, offset printer, flexographic press, hot foil stamping machine, die cutting machine, folder gluer, laminating machine, case maker, bag making machine, rigid box maker and woven bag production line. With high quality assurance and CE certificate, we are sure to provide our customers with the best bottle arranging machine at competitive price.
