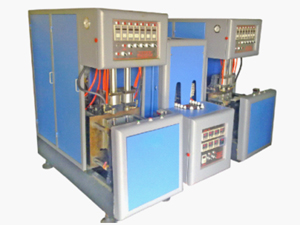

GL-5IIB Semi-Automatic Blow Moulding Machine

GL-5IIB Semi-Automatic Blow Moulding Machine

Description
This blow molding machine is suitable for manufacturing CO2 bottle, mineral water bottle, pharmaceutical bottle, oil bottle, cosmetic bottle and hot filling bottle.

Features
1. This semi-automatic blow moulding machine adopts two-bar linkage clamping design to increase clamping force.
2. Our blow molding machine uses advanced PLC control system, the time control can be accurate to 0.01 second.
3. This semi-automatic blow moulding machine is equipped with special air storage device and infrared pre-heater, which gives equilibrium temperature for inside and surface of the preform.

Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of paper processing, printing and packaging machine for customers around the world. We are very familiar with international market of folder gluer, laminating machine, paper coating machine and semi-automatic blow moulding machine and its trend of development. With high quality assurance, our blow molding machines are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan and South Africa.

Why choose us?

Parameters of Semi-Automatic Blow Moulding Machine

Item GL-880 Standard GL-5II B Combination
Material PET/PP/PE/PC PET/PP/PE/PC
Volume (L) 0.05.2.5(2-cavity)3-6(1-cavity) 0.05-2.5(4-cavitv)3-6(2-cavity)
Theoretical output (Pcs/h) 0.05-2.5L: 950 3-6L: 400 0.25-2.5L: 1900  3-6L: 800
Max.height (mm) 360 360
Max. diameter (mm) 180 180
Max. mould plate dimension (LxH) (mm) 420x500 420x500
Max. mould thickness (mm) 160-240 160-240
Clamping force (KN) 180 180
Mould opening stroke (adjustable) (mm) 200 200
Power (Kw) 12 12
Voltage/Frequency (V/Hz) 220-380/50-60 220-380/50-60
Main body dimension (LxWxH) (M) 1.66x1.74x2.2 1.66x1.74x2.2
Main body weight (T) 0.7 0.7
Pre-heater dimension (LxWxH)(M) 1.46x0.71x1.58 1.46x0.71x1.58
Pre-heater weight (T) 0.30 0.40
