Flexo Label Printing Machine

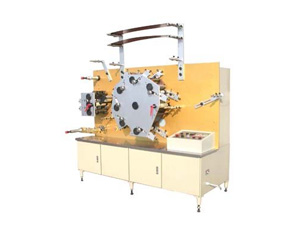

XHR Series Flexo Label Printing Machine

Description:
This XHR series flexo label printing machine can use to print color range from 2-10 by the adoption of different machines. The working flow is that, there is high precision anilox roller to transfer the ink to plate, and then, to the printing materials. This machine is suitable for the printing of cloth, ribbons and paper rolls, with the printed result of hick and solid ink layer and good fastness. In the meanwhile, the plate cylinder of different circumferences can be replace, so that to change the printing length of flexo label printing machine for different requirement.

Type:
XHR62, XHR52, XHR42, XHR41, XHR40, XHR32, XHR31, XHR30, XHR22, XHR21, XHR20

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of paper coating machine, case maker, paper bag making machine, rigid box maker (rigid box production line), woven bag production line (fabric bag making machine) for customers around the world. We are very familiar with international market of flexo die cutter, folder gluer, laminating machine and its trend of development. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best flexo label printing machine at competitive price.

Why choose us? Main Specification:
Max. printing width Max. printing length Printing speed Unwinding roll diameter Rewinding roll diameter
150mm 108-400(mm) 0-70m/min 400 mm 400 mm
Model XHR62 XHR52 XHR42 XHR41 XHR40 XHR32 XHR31 XHR30 XHR22 XHR21 XHR20
Printing color 6+2 5+2 4+2 4+1 4+0 3+2 3+2 3+0 2+2 2+1 2+0
Weight 950 kg 700kg 650kg 500kg 500kg
(L×W×H) 1986×800×2000(mm) 1550×750×18509(mm) 1300×750×1800(mm)
Total power 4.2kw 3.5kw
