High Speed Automatic Laminator

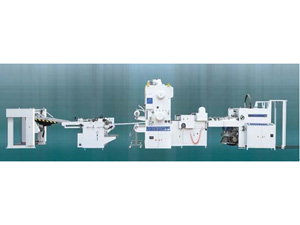

HQFM-1020 High Speed Automatic Laminator

Description:
This high speed automatic laminator HQFM-1020 is a kind of hydraulic laminating machine with hydraulic control system in laminating rubber roller for pressure stable. It is also a kind of heating roller laminator with steel roller and oil heating system, which in turns making temperature heating roller surface even and stable. In addition, this machine can used as water based laminating machine, or oil-type laminator, as well as dry-type lamination of multiple purposes.

Feature:
1. For the feeder, the machine adopts non-stop feeder with paper pre-loading function, allowing automatically feeding paper.
2. This machine uses high-precision front-side ruler, aligning paper automatically.
3. There is double-wheel brush and hot pressing power-removing unit for this machine.
4. It is equipped with disc-type cutting knife, which highly facilitating paper cutting speed.
5. There are frequency control and servo motor in main unit.
6. This machine is touch screen and PLC controlled.

Why choose us? Main Specification of HQFM-1020 High Speed Automatic Laminator:
Max paper size 910mm×1020mm
Min paper size 320mm×320mm
Fit paper thickness 80-500g/m2
Laminating temperature 80-120℃
Laminating pressure 0-25Mpa
Working speed 0-60m/min
Overall dimension(LXWXH) 13m×1.9m×2.5m
Total power 75kw
Total weight 7200 kg

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of laminating machine, paper coating machine, case maker for customers around the world. We are very familiar with international market of laminating machine, hot foil stamping machine, printing machine, paper coating machine and its trend of development. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
